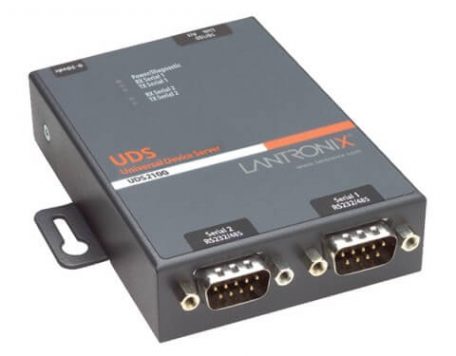

The UDS family of device servers enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. With the UDS2100, two pieces of equipment of virtually any type can be added to an Ethernet network in a matter of minutes! This dual-port device server is a quick, simple and inexpensive way to bring the advantages of remote management and control to equipment not currently connected to a network.
Remotely Monitor, Manage and Share Equipment Over the Net
The UDS family of device servers enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.
With the UDS2100, two pieces of equipment of virtually any type can be added to an Ethernet network in a matter of minutes! This dual-port device server is a quick, simple and inexpensive way to bring the advantages of remote management and control to equipment not currently connected to a network.
Extending Serial Communications Across the Globe
Our approach to network-enabling devices is transparent to your attached equipment and software so you won’t need to change the way you work. Using a method called serial tunneling, the UDS2100 encapsulates serial data into packets and transports it over Ethernet. Serial tunneling can be done in two ways:
The built-in web server enables users to access and configure the UDS2100 from a standard web browser. Using Lantronix development tools, users can build web pages to customize the UDS2100 for unique applications.
On-board Flash memory provides room for future system software upgrades and maintenance-free, nonvolatile web page storage.
Easy to Set Up and Use
The UDS2100 can be set up locally through its serial port, or remotely using Telnet or a web browser. The included DeviceInstaller Windows-based configuration software simplifies setup and provides an easy way to:
In modem emulation mode, the UDS is used to replace dial-up modems. The unit accepts modem AT commands on the serial port. It then establishes a network connection to the end device, leveraging network connections and bandwidth to eliminate dedicated modems and phone lines.
Total Com Port Control with TruPort Technology
Built into the included Com Port Redirector software, TruPort® technology enables Windows-based applications to access and control serial ports on the UDS2100 as if they were actually local PC serial ports. The application can monitor and set hardware pins on the UDS2100 serial ports as well as access serial buffers for total Com port control. This allows existing applications to seamlessly transition from controlling local devices to true remote monitoring and control of devices around the world.
Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
Connectors: 1 DB25F DCE serial port
Data Rates: Software-selectable baud rate from 300 to 230 KBaud
Serial Line Format
Characters: 7 or 8 data bits
Parity: odd, even, none
Stop Bits: 1 or 2 Control
Signals: CTS/RTS (Hardware)
Flow Control: XON/XOFF (Software)
Interface: 10Base-T/100Base-TX Ethernet port
Software selectable Ethernet speed 10/100/Auto
Software selectable Half/Full/Auto duplex
Standards: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, and Telnet, TFTP
Power, 10/100 Link/Activity (green)
100/100 Link/Activity (green)
CPU: Lantronix DSTNI-EX 48 MHz clock
Memory: 256 KB zero wait state SRAM, 2 MB Flash
Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP
DC or 9-24 VAC on barrel connector (1.5 Watts maximum consumption)
DC on DB25F serial interface
Powered over Ethernet via 802.3AF compliant power source
Operating: 0° to 60° C (32° to 140°F)
Storage: -40° to 85° C (-40° to 185° F)
UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864
Windows® 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector software and related utilities
Material: Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available
Dimensions (LxWxH): 9.0 x 6.4 x 2.3 cm (3.5 x 2.5 x 0.9 in)
Weight: 0.20 kg (0.45 lb)
IP Rating: 30
Dimensions (LxWxH): 35.5 x 17.1 x 7.6 cm (14 x 6.75 x 3 in)
Weight: 1.5 kg (3.0 lbs)
Designed with protection against transients and ESD for use under harsh environments.
Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers
Power Input: Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages
Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
