RG-S7800C Serisi

Ruijie RG-S7800C Anahtar Serisi, yeni nesil entegre ağ için özel olarak tasarlanmıştır. Gelişmiş RGOS11.X işletim sistemini ve VSU / VSD sanallaştırma teknolojilerini uygulayan anahtar, gelecekteki ethernet gereksinimlerini desteklemektedir. Öncü teknolojiler, entegre bir ağ oluşturmak için müşterilerin fiziksel ağ engellerini ortadan kaldırır. VSU (Sanal Anahtar Birimi) özelliği, operasyonel verimliliği artırmak için müşteri ağ mimarisini büyük ölçüde basitleştirir. Başka bir sanallaştırma teknolojisi olan VSD (Virtual Switch Device), cihaz kullanımını geliştirerek toplam yatırım maliyetini önemli ölçüde düşürür. RG-S7800C Anahtar Serisi, MAN, kampüs ağı ve benzer ayarlar için idealdir.



RG-S7800C Serisi Çekirdek Anahtarın öne çıkan özellikleri:

• Uygun maliyetli Giriş seviyesi Şasi Anahtarı

• 88,62Tbps’ye kadar Anahtarlama Kapasitesiyle Üstün Performans

• Ağ Sanallaştırma (VSU ve VSD) ve Gelişmiş Katman 3 Yönlendirme (OSPF, BGP) desteği

• Taşıyıcı Sınıfı Güvenilirlik: Kontrol Motoru / Güç / Fan Yedekliliği, Çalışır Durumda Değiştirilebilir Bileşenler

• Büyük ölçekli MAC (64K’ya kadar) ve ARP Tablosu (20K’ya kadar) desteği.

• Bağımsız PoE Güç Kaynağı Modülü ile PoE / PoE + desteği.

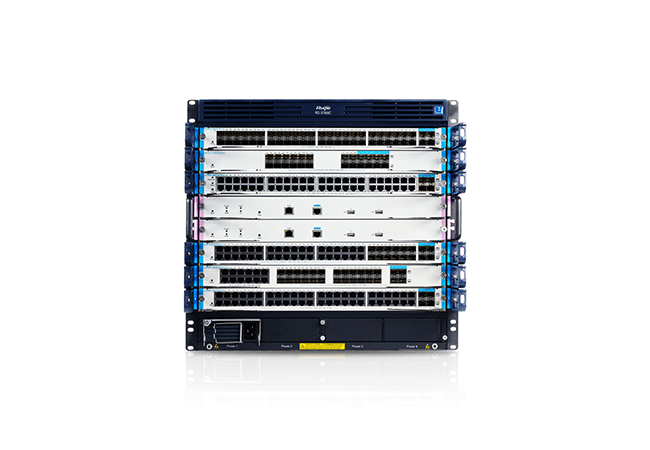

RG-S7800C resim

Model

RG-S7805C

RG-S7808C

Module Slots

5(2 for control engines)

8 (2 for control engines)

Modular Power Slots

2(for system power)

6 (4 for system power; 2 for PoE power)

Switching Capacity

19.2Tbps/52.13Tbps

22.25Tbps/88.62Tbps

Packet Forwarding Rate

215Mpps

624Mpps

Max. Number of 10GE Ports

Up to 24

Up to 48

PoE

Non Support

Support

ARP Table

Up to 20K

Up to 20K

MAC Address

Up to 64K

Up to 64K

Routing Entries

Up to 10K

Up to 10K

Multicast Entries (IPv4/IPv6)

Up to 8K/4K

Up to 8K/4K

ACL Entries

Up to 3,500

Up to 3,500

VLAN

Up to 4K

Up to 4K

QinQ

Basic QinQ, Flexible QinQ

Basic QinQ, Flexible QinQ

Link Aggregation

AP, LACP

AP, LACP

Port Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring

Spanning Tree Protocols

Support STP, RSTP and MSTP

Support STP, RSTP and MSTP

DHCP

Support DHCP relay, DHCP snooping, DHCP server, DHCP client

Support DHCP relay, DHCP snooping, DHCP server, DHCP client

Multiple Spanning Tree (MST) Instances

64 (not include default 0)

64 (not include default 0)

Maximum Aggregation Port (AP)

Up to 2,048

Up to 2,048

Virtual Routing and Forwarding (VRF) Instances

Up to 1,000

Up to 1,000

VSU (Virtual Switch Unit)

Up to 2 stack members

Up to 2 stack members

VSD (Virtual Switch Device)

Up to 4 VSD units

Up to 4 VSD units

L2 Features

Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032),MAC Based VLAN,Voice VLAN,RLDP

Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032)

Layer 2 Protocols

IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP

IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP

Layer 3 Features

ARP, IPv4/v6, PBR v4/v6

ARP, IPv4/v6, PBR v4/v6

Layer 3 Protocols (IPv4)

Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP)

Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP)

IPv4 Features

Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel

Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel

IPv6 Features

Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing,Policy-based routing, Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel

Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing
Policy-based routing, Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel

Basic IPv6 Protocols

DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6

DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6

Routing Protocols

RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy

RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy

IPv6 Tunnel Features

6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4)

6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4)

Multicast

IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing

IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing

G.8032

Support

Support

ACE Capacity

Up to 3,500

Up to 3,500

ACL

Standard/Extended/Expert ACL; ACL 80; IPv6 ACL

Standard/Extended/Expert ACL; ACL 80; IPv6 ACL

QoS

802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit

802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit

IPv6 ACL

Support

Support

Reliability

Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing

Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing

EEE Format

Support EEE (802.3az)

Support EEE (802.3az)

Security

NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login

NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login

Manageability

Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow

Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow

Hot Patch

Support

Support

Smart Temperature Control

Fan speed auto-adjustment; Fan malfunction alerts; Fan status check

Fan speed auto-adjustment; Fan malfunction alerts; Fan status check

Smart Power Supply

Support power control and management

Support power control and management

Other Protocols

DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog

DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog

Dimensions
(W x D x H)

442mmx 451mmx 175mm,4U

442mm ×595mm ×439mm, 10U

Rack Height

4RU

10RU

Weight

12.42kg

(total weight of empty chassis and fans)

32.35kg

(total weight of empty chassis and fans)

MTBF

312K hours

312K hours

Safety Standards

IEC 60950-1, EN 60950-1

Emission Standards

EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Power Supply

RG-PA300I-F:90-290Vac and 1 92-290Vdc ~300W

RG-PA1600I-F:90-180V~1200W;180-264V~ 1600W

RG-PA600I-F:90-180V~ 600W;180-264V~ 600W

RG-PA1600I-PL:90-175V~1000W;176-264V~1600W

RG-PA3000I-PL:90-175V~1200W;176-209V~2500W;210-264V~ :3000W

Power Consumption

<80W

<176W

PoE Power Consumption

Non Support

<800W

Temperature

Operating temperature: 0ºC to 50ºC

Operating temperature: 0ºC to 50ºC

Storage temperature: -40ºC to 70ºC

Storage temperature: -40ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH

Storage humidity: 5% to 95% RH

Operating Altitude

3,000m to 5,000m

3,000m to 4,000m
