RG-S6120-20XS4VS2QXS

RG-S6120 serisi anahtarlar, Ruijie tarafından yeni piyasaya sürülen yüksek performanslı ve yüksek güvenlikli yeni nesil 10G Ethernet anahtarıdır. Gelişmiş donanım mimarisi tasarımını ve Ruijie’nin yeni RGOS 12.Gen modüler işletim sistemini benimseyen anahtar, daha hızlı donanım işleme performansı ve daha uygun işletim deneyimi sağlar.

RG-S6120 serisi, maksimum 32 adet 10G fiber erişimi sağlar ve yüksek yoğunluklu erişim ve yüksek performanslı birleştirme kullanıcı gereksinimlerini tam olarak karşılayan yüksek performanslı 10/25/40G bağlantı noktasını destekler.

RG-S6120 serisi anahtarlar, yüksek performanslı ve kapsamlı uçtan uca QoS yanı sıra büyük ölçekli ağ toplama ve küçük ve orta ölçekli ağ çekirdekleri yüksek hız ve güvenlik sağlar.



Ürün Özellikleri:

• 32 adede kadar 10G Base-X Erişim Bağlantı Noktası ve 4 25G ve 2 40G uplink

• Yerleşik Gelişmiş Katman 3 Yönlendirme Desteği

• Güç ve Fan Yedekliliği Desteği (çalışırken değiştirilebilir)

• Sağlam Yüksek Güvenilirlikli Donanım Tasarımı (30 Yıl MTBF Garantisi)

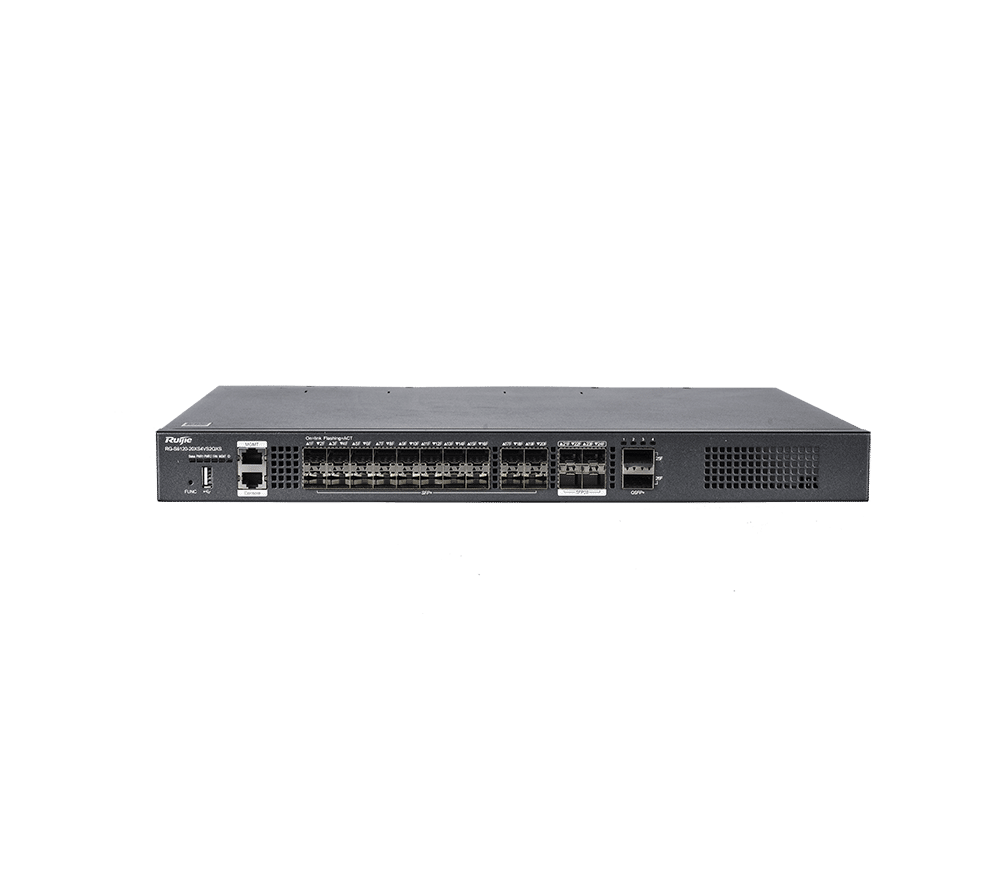

RG-S6120-20XS4VS2QXS resim

Model

RG-S6120-20XS4VS2QXS

Basic specifications

Fixed ports

20 1G/10GBASE-X SFP+ ports,

4 10G/25GBASE-X SFP28 ports,

2 40GBASE-X QSFP+ ports,

Support up to 32 10G ports,

2 modular power slots,

2 modular fan slots

Management ports

1 MGMT port

1 console port
1 USB port

Switching capacity

2.56T/23.04T

Packet forwarding rate

570Mpps/1260Mpps

Port Buffer

4MB

ARP Table

Up to 16K

MAC Address

Up to 32K

Routing Table Size
(IPv4/IPv6)

4K/4K

ACL Entries

Up to 2500

Product Features

VLAN

4K 802.1Q VLAN

Port-based VLAN

Private VLAN

GVRP

Super VLAN

QinQ

Basic QinQ

Link aggregation

LACP (802.3ad)

Port mirroring

Flow-based mirroring

Many-to-one mirroring, One-to-many mirroring

RSPAN

Link aggregation mirroring

Multiple Spanning Tree (MST) Instances

64

Spanning tree protocols

STP, RSTP, MSTP

Maximum Aggregation Port (AP)

128

DHCP

DHCP Server

DHCP Client

DHCP Snooping

DHCP Relay

IPv6 DHCP Snooping

IPv6 DHCP Client

IPv6 DHCP Relay

IPv6 protocols

IPv6 addressing, ICMPv6, Path MTU Discovery

IP routing

Static routing

RIP, RIPng

OSPFv2, OSPFv3, IS-ISv4, IS-ISv6

BGP4, BGP4+

ECMP

Multicast

IGMP v1/v2/v3, IGMP proxy

IGMP v1/v2/v3 snooping

IGMP filtering, IGMP fast leave

PIM-DM, PIM-SM, PIM-SSM

MLD Snooping, MLD

MSDP

ACL &

QoS

ACL

Various hardware-based ACLs:

Standard IP ACL (Based on IP address)

Extended IP ACL (Based on IP address and TCP/UDP port number)

Extended MAC ACL (Based on source and destination MAC addresses and Ethernet type)

Time-based ACL

Expert ACL (Based on the flexible combination of VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port, protocol type and time)

ACL80

IPv6 ACL

QoS

Port-based traffic recognition

Port-based speed limit

802.1p/DSCP/TOS traffic classification

8 priority queues per port

Queue scheduling algorithms: SP, WRR, DRR, SP+WRR, SP+DRR, RED/WRED

Security

Filter unauthorized MAC addresses

Broadcast storm suppression

Hierarchical management by administrators and password protection

RADIUS and TACACS+

SSH

BPDU Guard

CPP, NFPP

Management

SNMP, CLI (Telnet/Console), RMON (1,2,4,9), Syslog, NTP, SNMP over IPv6, IPv6 MIB support for SNMP, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, Traceroute v6

Support sFlow to sample the packets of the switch traffic using the random sampling technology of data stream

Reliability

VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF/BGP; BFD; G.8032 (ERPS), REUP; RLDP; 1+1 power redundancy; Hot-swappable power module and fan module

VSU (Virtual Switch Unit)

Up to 2 stack members

Physical Specifications

Power supply

Supported power module: RG-PA150I-F

AC input:
Rated voltage range:

100 to 240VAC; 50/60Hz

Maximum voltage range:

90 to 264VAC; 47/63Hz
Rated input current: 3A

HVDC input:
Rated voltage range: 240VDC

Maximum voltage range: 192 to 288 VDC

Rated current per input: 3A

Power Consumption

<85W

Power Surge Protection

4KV (MGMT Port)

Power Supply Module (RG-PA150I-F): common mode 6KV/difference mode 6KV

Fan

Support 2 pluggable modular fans with front and rear air ducts

Support fan speed adjustment and malfunction alert

Temperature alarm

Support temperature alarm function

Temperature

Operating temperature:

0°C to 50°C

Storage temperature:

-40°C to 70°C

Humidity

Operating humidity: 10% to 90%RH

Storage humidity: 5% to 90%RH

Operating Altitude

0 to 5,000m

Dimensions

(W x D x H) (mm)

440 * 330 * 43.6(W * D * H,mm)

Rack Height

1RU

MTBF

30 Years

Safety Standards

GB4943-2011

EN 62368-1:2014+A11:2017

Emission Standards

GB9254-2008 CLASSA

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013+A1:2019

EN 55035:2017

ETSI EN 300 386 V2.1.1 (2016-07)
