RG-S5750-H Serisi

Ruijie RG-S5750-H Serisi, olağanüstü performans ve gelişmiş güvenlik sunan yeni nesil çoklu hizmet anahtarlarından oluşan bir koleksiyondur. Sektör lideri bir donanım tasarımını ve Ruijie’nin en yeni RGOS11.X modüler işletim sistemini uygulayan anahtarlar, daha fazla kapasite, gelişmiş donanım işleme performansı ve daha kolay kullanıcı operasyonu sunar.

RG-S5750-H Serisi, esnek Gigabit erişimini ve yüksek yoğunluklu 10G bağlantı noktası ölçeklenebilirliğini destekler. Tüm modeller sabit 4 10G fiber bağlantı noktası sunar, 4 model çift genişletme yuvası sunar ve yüksek yoğunluklu, yüksek performanslı bağlantı noktası bağlantı performansını destekler. Bu lider özellikler, yüksek yoğunluklu erişim ve zorlu toplama gereksinimlerini tam olarak karşılar.



Olağanüstü performans-fiyat oranına sahip RG-S5750-H Serisi, büyük ölçekli ağların, küçük ve orta ölçekli ağların ve veri merkezi sunucu erişiminin bir araya getirilmesi için idealdir. Uçtan uca hizmet performansı ve çok çeşitli güvenlik ayarlarıyla RG-S5750-H Serisi, kurumsal ağların yüksek hızlı, güvenli ve akıllı taleplerini tam olarak karşılar.

RG-S5750-H Serisinin öne çıkan özellikleri:

• Büyük kampüs ağı için özelleştirilmiş: 64K MAC adresine kadar

• Olağanüstü performans ve ölçeklenebilirlik: 598Gbps / 5.95Tbps’ye kadar anahtarlama kapasitesi.

• Ağ sanallaştırma (VSU) desteklenir: 9’a kadar yığınlama desteği

• Gelişmiş Katman 3 yönlendirme, MPLS ve SDN özellikleriyle kullanıma hazır.

• Yüksek güvenilirlik: Çalışır durumda güncelleme imkanı, 1 + 1 güç modülü yedekliliği, çalışır durumda değiştirilebilir bileşenler.

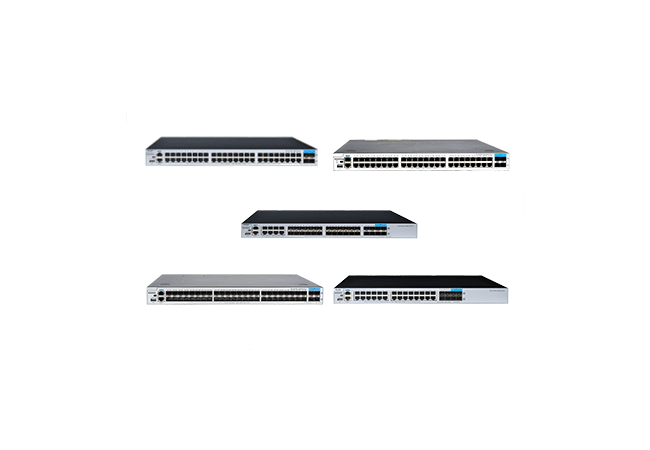

RG-S5750-H Serisi resim

Model

RG-S5750C-28GT4XS-H

RG-S5750C-48GT4XS-H

RG-S5750C-28SFP4XS-H

Ports

28 10/100/1000BASE-T ports
4 100/1000BASE-X SFP ports (combo)
4 1G/10GBASE-X SFP+ ports

48 10/100/1000BASE-T ports
4 1G/10GBASE-X SFP+ ports

28 100/1000BASE-X SFP ports

8 10/100/1000BASE-T ports (combo)
4 1G/10GBASE-X SFP+ ports

Expansion Slots

2

Modular Power Slots

2

Fan Slots

Fixed

Expansion Modules

M5000H-01QXS
M5000H-04XS

Management Ports

1 console port
1 MGMT port
1 Mini USB console port
1 USB 2.0 port

Switching Capacity

598Gbps/5.98Tbps

Packet Forwarding Rate

222Mpps/342Mpps

252Mpps/372Mpps

222Mpps/342Mpps

Max. Number of 10GE Ports

4

8

4

Max. Number of 40GE Ports

1

Port Buffer

4MB

ARP Table

Up to 20K

MAC Address

Up to 64K

Routing Table Size
(IPv4/IPv6)

12K/6K

ACL Entries

Up to 3500

VLAN

4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Super VLAN, Guest VLAN

QinQ

Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching

Link Aggregation

Support LACP (802.3ad) (maximum 8 ports can be aggregated)

Port Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN

Spanning Tree Protocols

IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.3s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard

DHCP

DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay

Multiple Spanning Tree (MST) Instances

64

Maximum Aggregation Port (AP)

Up to 2,048

SDN

OpenFlow 1.0 & 1.3

VSU (Virtual Switch Unit)

Up to 9 stack members

Zero Configuration

CWMP(TR069)

L2 Features

MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, MLD snooping, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel

Layer 2 Protocols

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s

Layer 3 Features

Static routing, Equal-Cost Multi-Path Routing (ECMP), OSPF, OSPF v3, BGP, BGP4+, RIP, RIPng, IS-IS, IS-IS v6, MCE

Layer 3 Protocols (IPv4)

Static routing, RIP, OSPF, IS-IS, BGP, ECMP

IPv4 Features

Ping, Traceroute, ECMP, URPF, IP-IP, GRE tunnel (4 over 6), GRE tunnel (6 over 4), IPv4 VRF

IPv6 Features

ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address, Neighbor Discovery, 0-64 bit mask, 65-128 bit mask, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 VRF, IPv6 extender option head

Basic IPv6 Protocols

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless automatic configuration, and Path MTU Discovery

IPv6 Routing Protocols

Static routing, Equal-Cost Multi-Path Routing (ECMP), OSPF, OSPF v3, BGP, BGP4+, RIP, RIPng, IS-IS, IS-IS v6, MCE; Packet–based load balancing and flow-based load balancing

IPv6 Tunnel Features

Manual tunnel, auto tunnel, ISATAP, IPv4 over IPv6, IPv6 over IPv6, GRE tunnel

Multicast

IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing

MPLS

MPLS L3 VPN

G.8032

Support

ACL

Standard IP ACL (Based on IP address); Extended IP ACL (Based on IP addresses and TCP/UDP port number); MAC-extended ACL (Based on source and destination MAC addresses and optional Ethernet type); Time-based ACL; Expert ACL (Based on the flexible combination of VLAN number, Ethernet type, MAC address, IP address, TCP/UDP port, protocol type, and time); ACL80; IPv6 ACL

QoS

802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, SP+DRR; RED / WRED; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities

IPv6 ACL

Support

Reliability

VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF/BGP; BFD detection; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module

EEE Format

Support IEEE 802.3az standard

Security

Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection

Manageability

SNMP v1/v2/v3; CLI (Telnet/Console); RMON (1, 2, 3, 9); SSH; FTP / TFTv6; Syslog; SPAN / RSPAN, NTP / SNTP, SNMP over IPv6; IPv6 MIB support for SNMP, SSHv6, Telnetv6, DNS v6; NTP for v6; Traceroute v6; Support sFlow, traffic sampling of the switch can be performed via data stream random sampling technology

Hot Patch

Support (the restart process does not affect the existing service forwarding)

Smart Temperature Control

Auto fan speed adjustment; Fan malfunction alerts; Fan status check

Smart Power Supply

Support power monitor

Other Protocols

FTP, TFTP, DNS client, DNS static

Dimensions
(W x D x H)  (mm)

440 × 280 × 44

440 × 300 × 44

440 × 300 × 44

Rack Height

1RU

Weight

3.9kg

4.2kg

4.2kg

MTBF

>200K hours

Safety Standards

IEC 60950-1, EN 60950-1

Emission Standards

EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50Hz to 60Hz

DC input:
Rated voltage range: 120V to 340V DC
Maximum voltage range: 110V to 380V DC

Power Consumption

45W

45W

55W

Temperature

Operating temperature: 0°C to 50°C

Storage temperature: -40°C to 70°C

Humidity

Operating humidity: 10% to 90%RH

Storage humidity: 5% to 95%RH

Operating Altitude

-500m to 5,000m
