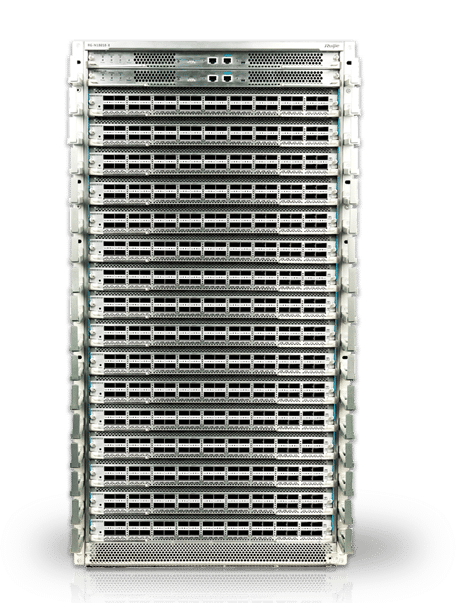

RG-N18000-X Switch Serisi

Ruijie 18000-X anahtar serisi (RG-N18000-X) yeni nesil, yüksek performanslı, gelişmiş bir donanıma sahip en yüksek özellikli çekirdek anahtarları iki modele sahiptir. Yüksek verimlilik ve yüksek kararlılıkta anahtarlama sunan RG-N18018-X ve RG-N18010-X modelleri 10 yıllık sorunsuz ağ yükseltmelerini garanti eder.



CLOS ortogonal anahtarlama mimarisi ve maksimum kasa başına 461Tbps mertebesine kadar anahtarlama kapasitesine sahiptir. RGN18000-X Serisi, bir şaside 576 adet 100Gbps, 576 adet 40Gbps, 2304 adet 10Gbps kapasitesini tam olarak destekler.

RG-N18000-X Serisi, önden arkaya hava akışı tasarımı ile çok daha verimli bir ısı dağılımını çok daha düşük bir fan dönüş hızı ile sağlar ve daha az fan sayısı ve daha düşük gürültü seviyesi sunar. RGN18000-X ayrıca enerji tasarrufu teknolojisini kullanarak kasanın güç tüketimini en aza indirir.

RG-N18000-X Switch Serisi

Model

RG-N18018-X

RG-N18010-X

Module Slots

18 (2 for control engines)

10 (2 for control engines)

Modular Power Slots

16

8

Control Engine Slots

2

2

Service Module Slots

16

8

Fabric Engine Slots

6

6

Switching Capacity

178Tbps/1032Tbps

89Tbps/516Tbps

Packet Forwarding Rate

86400Mpps

43200Mpps

Airflow Design

Front-to-rear airflow

Device Virtualization

VSU3.0 (Virtual Switch Unit)

Network Virtualization

VXLAN network bridge, VXLAN network gateway

VXLAN

VXLAN Layer 2 Bridge, VXLAN Layer 3 Bridge, EVPN VXLAN

L2 Features

Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ or flexible QinQ, LLDP

IPv4 Features

Static routing, RIP, OSPF, IS-IS, BGP4, VRRP, equal cost routing, strategic routing and GRE tunnel

IPv6 Features

Static routing, OSPFv3, BGP4+, IS-ISv6, MLDv1/v2, VRRPv3, equal-cost routing, strategic routing, manual tunnel, GRE tunnel

Multicast

IGMP v1/v2/v3, IGMP Snooping, IGMP Proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing

ACL

Standard/Extended/Expert ACL, IPv6 ACL

QoS

802.1p, Queue scheduling mechanisms (SP, WRR, DRR, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit, HQoS

Reliability

Independent fabric engine and independent control engine design to achieve the compete separation of forwarding and control panel

Control engine 1+1 redundancy; fabric engine N+1 redundancy, power supply and fan N+M redundancy; zero-backplane design to avoid single point of failure; Hot-swappable components; Hot patch and online patch upgrade; ISSU; NSR; GR for OSPF/IS-IS/BGP, BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/MPLS/static routing

Security

NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, uRPF, Portal authentication, user login authentication, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login

Manageability

Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem, SFTP file upload/download management; SNMP V1/V2c/V3; Netconf, RMON; NTP clock; Fault alarm and auto-recovery; System log; Flow Analysis; Automated Configuration

Dimensions
(W x D x H)  (mm)

442*1017*934(21U)

442*1017*534(12U)

Power Supply

RG-PA2700I:

100-120VAC 1350W

200-240VAC 2700W

MTBF

>=200K hours

Temperature

Operating temperature: 0ºC to 45ºC

Storage temperature: -40ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH

Operating Altitude

-500m to 5,000m
