TRC-190 Serisi

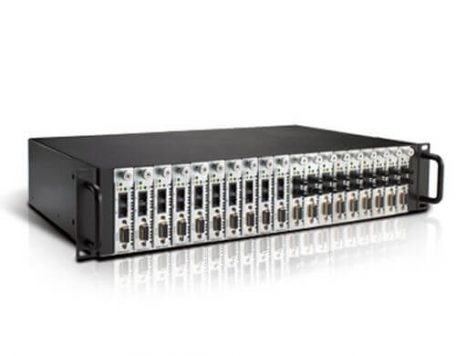

TRC-190 resim

Rackmount chassis for the NRack System

  • Rack-mount montaj için 19-inç şasi
  • Çok noktalı ve yüksek ölçekli uygulamalar için 19 modül boşluğu
  • Hot-swap desteği ve yedekli çift güç girişi
  • Fansız şasi sayesinde düşük servis maliyeti

• Physical Characteristics
Housing SECC (1.2 mm)
Dimensions 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Weight 5.2 kg (11.4 lbs), with one power module installed
Number of Slots 19 slots in the front for slide-in modules, 2 slots in the back for power supply modules
• Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage Universal 100 to 240 VAC (47 to 63 Hz) or 36 to 72 VDC
Power Consumption Max. Output: 3.2A @ 36VDC
• Standards and Certifications
Safety UL 60950-1, EN 60950-1
EMC CE, FCC
EMI EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3,
EN 61000-4-11 (DIPS)
Green Product RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time 1,055,112 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Available Models
TRC-190-AC: Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel
TRC-190-DC-48: Rack chassis, 2U, single 36 to 72 VDC input, with 19 slots on front panel
Compatible Modules
TCF-142-RM Series
TCF-142-M-SC-RM: RS-232/422/485 to multi-mode fiber slide-in module converter, SC connector
TCF-142-M-ST-RM RS:-232/422/485 to multi-mode fiber slide-in module converter, ST connector
TCF-142-S-SC-RM RS:-232/422/485 to single-mode fiber slide-in module converter, SC connector
TCF-142-S-ST-RM RS:-232/422/485 to single-mode fiber slide-in module converter, ST connector
CSM-200 Series
CSM-200-1213: 10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector
CSM-200-1214: 10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode SC connector
CSM-200-1218: 10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector
Optional Accessories
Other Accessories
PWR-190-AC: Redundant power supply, 110 to 240 VAC
PWR-190-DC-48: Redundant power supply, 36 to 72 VDC
