PTC-101-M12 Serisi

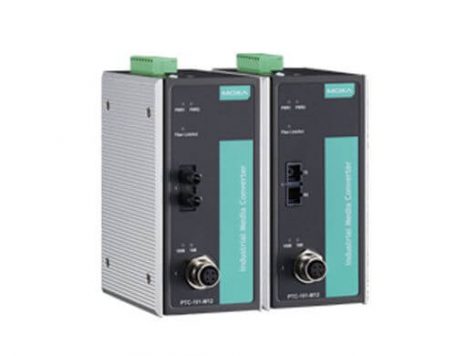

PTC-101-M12 resim

EN 50121-4 Ethernet-fiber çevirici

  • 10/100BaseT(X) auto-negotiation ve auto-MDI/MDI-X desteği
  • Link Fault Pass-through (LFP) desteği
  • Role çıkışı sayesinde güç kesintisi uyarı desteği (LV modellerinde)
  • -40 to 85°C çalışma sıcaklığı aralığı
  • Yedekli DC güç girişi (LV modellerinde)
  • Tümleşik yüksek güvenilirlikli güç kaynağı , harici güç transformatörü ihtiyacını ortadan kaldırır
  •  EN 50121-4 ve EN 50155 uyumluluğu

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X), 100BaseFX
• Interface
RJ45/M12 Ports 10/100BaseT(X)
Fiber Ports 100BaseFX (SC/ST/LC connectors)
LED Indicators PWR1, PWR2, Fiber Link, 10/100M (TP port)
DIP Switches
Alarm Contact One relay output with current carrying capacity of 1 A @ 24 VDC (LV model only)
• Physical Characteristics
Housing Metal, IP30 protection
Dimensions 152.15 x 123.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight Product only: 690 g
Packaged: 875 g
• Environmental Limits
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Conformal Coating Available upon request
• Power Requirements
Note LV-DC compliant with EN 50155 on 48VDC
HV-DC compliant with EN 50155 on 110VDC
Connection Removable terminal block
Overload Current Protection 1.6 A (protects against two signals shorted together)
Reverse Polarity Protection Protects against V+/V- reversal
• Standards and Certifications
Safety UL 60950-1
EMC CE, FCC
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 4,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8 (PFMF) Level 5,
EN 61000-4-11
Power Automation IEC 61850-3, IEEE 1613
Rail Traffic EN 50155, EN 50121-4
Freefall IEC 60068-2-32
Vibration IEC-61850-3, IEC-60870-2-2, EN 50125-3
Green Product RoHS, CRoHS, WEEE
Note Refer to the “Environmental Type Tests” table below for more detailed information.
• MTBF (mean time between failures)
Time 1,211,613 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Available Models

PTC-101-M12-S-SC-LV-T: Industrial 10/100BaseT(X) to 100BaseFX media converter, M12 connector,single-mode with SC connector, 20-72 VDC power input, -40 to 85°C operating temperature
PTC-101-M12-S-ST-LV-T: Industrial 10/100BaseT(X) to 100BaseFX media converter, M12 connector,single-mode with ST connector, 20-72 VDC power input, -40 to 85°C operating temperature
PTC-101-M12-S-SC-LV-CT-T: Industrial 10/100BaseT(X) to 100BaseFX media converter, M12 connector, single-mode with SC connector, 20-72 VDC power input, conformal coating, -40 to 85°C operating temperature
PTC-101-M12-S-ST-LV-CT-T: Industrial 10/100BaseT(X) to 100BaseFX media converter, M12 connector, single-mode with ST connector, 20-72 VDC power input, conformal coating, -40 to 85°C operating temperature

Optional Accessories
Mounts / Brackets / Drive Kits
DK-DC50131-01: DIN-Rail mounting kit
