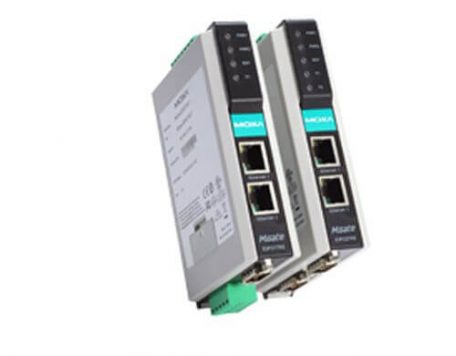

MGate EIP3170/MGate EIP3270 Serisi

191798284 resim

1 ve 2-port seçenekli  DF1 to EtherNet/IP Ağ Geçidi

  • Rockwell Otomasyon ağı için PCCC obje Desteği
  • ProCOM özelliği ile COM Port Mapping Özelliği
  • 16 adet isteğe kadar ile  8 eş zamanlı EtherNet/IP client/server çifti
  • Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
  • Daha kolay problem teşhisi için EtherNet/IP ve DF1 protokol analizörü
  • Yedekli çift DC Besleme Girişleri
  • 2 ethernet portu sayesinde kaskad bağlantıya imkan sağlar.
  • -40 ile 75°C arasındaki ortam sıcaklığında çalışabilir.

Ürün Seçim Klavuzu için tıklayınız

• Ethernet Interface

Protocol

CIP (PCCC) on EtherNet/IP

Number of Ports

EIP3170/3170I: 2 (1 IP, Ethernet cascade)
EIP3270/3270I: 2 (2 IPs)

Speed

10/100 Mbps, Auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

• Serial Interface

Protocol

DF1 Full-duplex

Number of Ports

EIP3170/3170I: 1
EIP3270/3270I: 2

Serial Standards

RS-232/422, software selectable

Connectors

EIP3170/3170I: DB9 male for RS-232, terminal block for RS-422
EIP3270/3270I: DB9 male x 2

ESD Protection

15 kV for all signals

• Serial Communication Parameters

Data Bits

8

Stop Bits

1, 2

Parity

None, Even, Odd

Flow Control

RTS/CTS, DTR/DSR (RS-232 only)

Baudrate

1200 bps to 921.6 kbps

• Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

• Software

Utility

MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)

Configuration Options

Serial Console, Telnet Console, Windows Utility

Support

Smart Routing, Serial Redirection, ProCOM, MXview, SNMP v1 (read only)

• Physical Characteristics

Housing

Plastic

Weight

MGate EIP3170: 360 g
MGate EIP3270: 380 g

Dimensions

Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m (795 hPa), higher altitudes on demand

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Power Requirements

Input Voltage

12 to 48 VDC

Power Connector

Terminal block

Power Consumption

MGate M3170: 435 mA (max.)
MGate M3170I: 555 mA (max.)
MGate M3270: 435 mA (max.)
MGate M3270I: 510 mA (max.)

• Standards and Certifications

Safety

UL 508, EN 60950-1

Hazardous Location

UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA IIC T3 Gc, IECEx (-IEX model only)

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8 (PFMF) Level 1,
EN 61000-4-11

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

• Reliability

MTBF (mean time between failures)

MGate EIP3170: 210,794 hrs
MGate EIP3270: 125,234 hrs

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Modeller

MGate EIP3170

1-port EtherNet/IP to DF1 gateway, 0 to 55°C operating temperature

MGate EIP3170I

1-port EtherNet/IP to DF1 gateway with 2 KV isolation, 0 to 55°C operating temperature

MGate EIP3270

2-port EtherNet/IP to DF1 gateway, 0 to 55°C operating temperature

MGate EIP3270I

2-port EtherNet/IP to DF1 gateway with 2 KV isolation, 0 to 55°C operating temperature

MGate EIP3170-T

1-port EtherNet/IP to DF1 gateway, -40 to 75°C operating temperature

MGate EIP3170I-T

1-port EtherNet/IP to DF1 gateway with 2 KV isolation, -40 to 75°C operating temperature

MGate EIP3270-T

2-port EtherNet/IP to DF1 gateway, -40 to 75°C operating temperature

MGate EIP3170-IEX

1-port EtherNet/IP-to-DF1 gateway, 0 to 55°C operating temperature, IECEx certification

MGate EIP3170I-IEX

1-port EtherNet/IP-to-DF1 gateway with 2 KV isolation, 0 to 55°C operating temperature, IECEx certification

MGate EIP3270-IEX

2-port EtherNet/IP-to-DF1 gateway, 0 to 55°C operating temperature, IECEx certification

MGate EIP3270I-IEX

2-port EtherNet/IP-to-DF1 gateway with 2 KV isolation, 0 to 55°C operating temperature, IECEx certification

MGate EIP3170-T-IEX

1-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature, IECEx certification

MGate EIP3170I-T-IEX

1-port EtherNet/IP-to-DF1 gateway with 2 KV isolation, -40 to 75°C operating temperature, IECEx certification

MGate EIP3270-T-IEX

2-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature, IECEx certification
