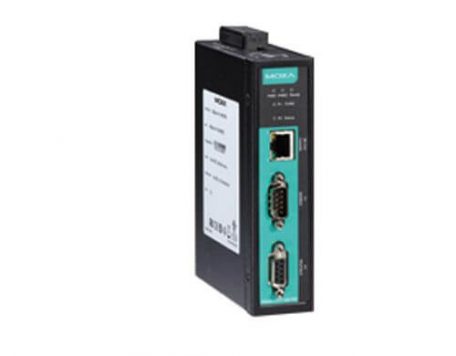

1-port Modbus RTU/ASCII/TCP ile EtherNet/IP Ağ Geçidi
MGate 5105-MB-EIP EtherNet/IP ağ geçidi Engineer’s Choice Award ödülünü kazanmıştır.
• Ethernet Interface
Protocol
EtherNet/IP, Modbus TCP
Number of Ports
2 (1 IP, Ethernet cascade)
Speed
10/100 Mbps, Auto MDI/MDIX
Connector
8-pin RJ45
Magnetic Isolation Protection
1.5 kV (built-in)
EtherNet/IP • Class
Adapter, Scanner
• CIP Objects Supported
Identity, Message Router, Assembly,
Connection Manager, TCP/IP interface, Ethernet link, Port
• Max. Number of Connections
MGate as Adapter: 16 connections for read-only, 1 connection for
read/write
MGate as Scanner: 100 connections
• Max. Total I/O Data Size
Input: 2048 bytes (496 bytes per connection)
Output: 2048 bytes (496 bytes per connection)
Modbus • Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. Number of Commands
100
• Max. Total I/O Data Size
Input: 2048 bytes
Output: 2048 bytes
• Serial Interface
Protocol
Modbus RTU/ASCII
Number of Ports
1
Serial Standards
RS-232/422/485, software selectable
Connectors
DB9 male
Isolation
2 kV (built-in)
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Terminator for RS-485
120 Ω
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, RTS Toggle
Baudrate
50 bps to 921.6 kbps
• Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
• Software
Operation Modes
EtherNet/IP Adaptor/Scanner, Modbus RTU/ASCII/TCP Master/Slave
Configuration Options
Web Console, Windows Utility, Serial Console
Utilities
MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Support
MXview, SNMP (v1, v2, v3), Private MIB
• Physical Characteristics
Housing
Metal, IP30 protection
Weight
507 g
Dimensions
36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Storage Card Slot
1 microSD (SDHC) card slot supports up to 32 GB
• Environmental Limits
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m (795 hPa), higher altitudes on demand
Note
Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Power Requirements
Input Voltage
12 to 48 VDC
Power Connector
Terminal block
Power Consumption
455 mA @ 12 VDC, 125 mA @ 48 VDC
• Standards and Certifications
Safety
UL 508, EN 60950-1
Hazardous Location
UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T3 Gc,
IECEx (Pending)
EMC
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024,
EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8 (PFMF) Level 3
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
• Reliability
MTBF (mean time between failures)
513,139 hrs
• Warranty
Warranty Period
5 years
Details
See www.moxa.com/warranty
Modeller
MGate 5105-MB-EIP
1-port Modbus-to-EtherNet/IP gateway, 0 to 60°C operating temperature
MGate 5105-MB-EIP-T
1-port Modbus-to-EtherNet/IP gateway, -40 to 75°C operating temperature
Opsiyonel Aksesuarlar
Yazılım
MXview
Industrial network management software
Güç Kaynakları
DR-4524
45W/2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 50°C operating temperature
DR-75-24
75W/3.2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 60°C operating temperature
DR-120-24
120W/5A DIN-Rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248-370 VDC , -10 to 60°C operating temperature
Konnektörler
Mini DB9F-to-TB
Mini Female DB9 to Terminal Block
