IMC-21 Serisi

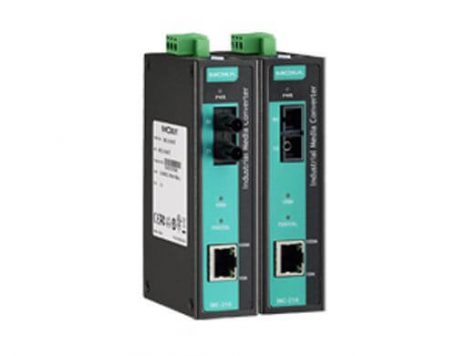

IMC-21 resim

Entry-level industrial 10/100BaseT(X) to 100BaseFX media converter

  • Multi-mode ya da single-mode, SC yada ST fiber konnektör tipinde
  • Link Fault Pass-through (LFP) desteği
  • FDX/HDX/10/100/Auto/Force seçimi için DIP switch özelliği

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
• Interface
RJ45 Ports 10/100BaseT(X)
Fiber Ports 100BaseFX (SC/ST connectors)
LED Indicators Power, 10/100M (TP port), 100M (fiber port), FDX/COL (fiber port)
DIP Switches TP port’s 10/100M, Half/Full modes, and Force/Auto modes, fiber connection’s Full/Half mode, Link Fault Pass-Through (LFP)
• Physical Characteristics
Housing Plastic, IP30 protection
Dimensions 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)
Weight 125 g
Installation DIN-Rail mounting
• Environmental Limits
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage 12 to 48 VDC
Input Current 150 mA @ 24 VDC
Connection Removable 3-contact terminal block
Overload Current Protection 1.1 A
Reverse Polarity Protection Present
• Standards and Certifications
Safety UL 508
EMC CE, FCC
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 1
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Green Product RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time 353,000 hrs
Database MIL-HDBK-217F, GB 25°C
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Available Models

IMC-21-M-SC: Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC connector
IMC-21-M-ST: Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST connector
IMC-21-S-SC: Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC connector

Optional Accessories

Mounting Kits
RK-4U: 4U-high 19" rack mounting kit
