IMC-101G Serisi

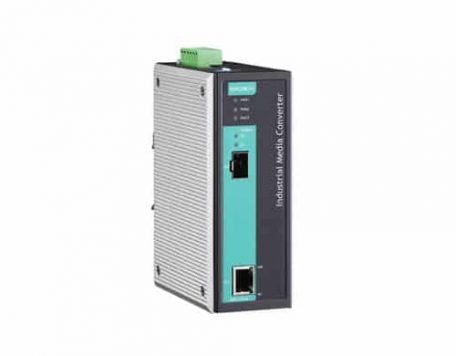

IMC-101G resim

Endüstriyel Gigabit Ethernet – Fiber çevirici

  • 10/100/1000BaseT(X) ve 1000BaseSFP modül desteği
  • Link Fault Pass-through (LFP) desteği
  • Role çıkışı sayesinde güç kesintisi uyarı desteği
  • Yedekli Güç girişi
  • -40 to 75°C çalışma sıcaklığı desteği (T modellerinde)
  • Zarer verici endüstriyel ortamlarda çalışmaya yönelik tasarım (Class 1 Div. 2/Zone 2, IECEx)
  • 20 den fazla model

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LSX/LX/LH/LHX/ZX/E2X
• Interface
Fiber Ports 1000BaseSFP slot
LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port)
DIP Switches Port break alarm mask, Link Fault Pass-through, SFP Auto/Force
Alarm Contact One relay output with current carrying capacity of 1 A @ 24 VDC
RJ45 Ports 10/100/1000BaseT(X)
• Optical Fiber
Note See the SFP-1G series product information on page 3-17 for detailed spec information.
• Physical Characteristics
Housing Metal, IP30 protection
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.32 x 4.13 in)
Weight 630 g
Installation DIN-Rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage 12 to 45 VDC redundant inputs
Input Current 110 mA @ 24 VDC
Connection Removable terminal block
Overload Current Protection 2.5 A
Reverse Polarity Protection Present
• Standards and Certifications
Safety UL 508
Hazardous Location UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC nL IIC T4, IECEx
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Green Product RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time 500,540 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See

Available Models

IMC-101G: Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C
IMC-101G-T: Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, -40 to 75°C
IMC-101G-IEX: Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, 0 to 60°C operating temperature
IMC-101G-T-IEX: Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, -40 to 75°C operating temperature
