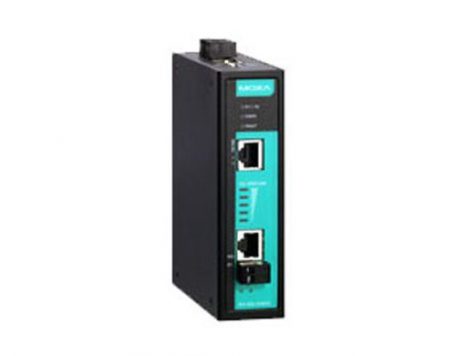

IEX-402-SHDSL Serisi

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1p for Class of Service
ITU-T G.991.2 for Single-pair high-speed digital subscriber line transceivers
Protocols SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP, HTTP, Telnet, Syslog, LLDP, Modbus/TCP
MIB MIB-II
Flow Control IEEE 802.3x flow control, back pressure flow control
• Switch Properties
MAC Table Size 1K
Packet Buffer Size 512K
• Interface
DSL Port DSL Port: RJ-11(RJ-45 connector) or detachable 2-contact terminal block
RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port RS-232 (RJ45 connector)
DIP Switches CO/CPE, SNR/SPEED, ANNEX B/ANNEX A, STD/TURBO
Button Reset button
LED Indicators PWR1, PWR2, FAULT, STATE, LINK/ACT, CO/CPE, 10/100 (TP port)
• Power Requirements
Input Voltage 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current 0.36A @ 24 V
Overload Current Protection Present
Connection 2 removable 2-contact terminal block
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal, IP30 protection
Dimensions 35 x 130 x 105 mm (1.38 x 5.12 x 4.13 in)
Weight
290 g

Installation DIN-rail mounting, wall mounting (with optional kit)
Altitude Up to 2000 m
Note Contact Moxa for products guaranteed to function at higher altitudes.
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety UL 508
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA TS2 (IEX-402-VDSL2 only)
Rail Traffic EN 50121-4
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time 1,310,000 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Available Models

IEX-402-SHDSL: Managed SHDSL Ethernet extender with 1 10/100BaseT(x) port and 1 DSL port, -10 to 60 °C operating temperature
IEX-402-SHDSL-T: Managed SHDSL Ethernet extender with 1 10/100BaseT(x) port and 1 DSL port, -40 to 75 °C operating temperature

Optional Accessories

MXconfig: Industrial network configuration tool
