EDS-G512E-8POE Serisi

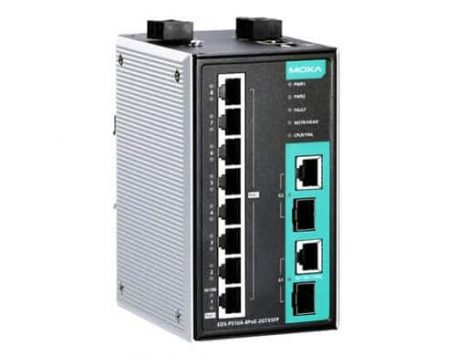

EDS-G512E-8POE resim

12G-port Full Gigabit PoE+ Yönetilebilir Ethernet Anahtarları

MOXA EDS-G512E-8POE Serisi​​ Teknik Özellikleri​

  • Gelişmiş PoE Yönetim Fonksiyonu (PoE Port Ayarları,PD Hata Kontrolü, PoE Zaman Ayarlama)
  • Major yönetim fonksiyonları ve hızlı kurulum için CLI desteği
  • IPv6 Ready desteği (IPv6 Logo Komitesi Sertifikalı)
  • Hassas zaman senkronizasyonu için yazılım tabanlı IEEE 1588 PTPv2 (Hassas Zaman Protokolü) desteği sağlar.
  • Farklı kurallar ile IP ataması için DHCP Option 82 desteği
  • Cihaz yönetim ve izleme için Ethernet/IP, PROFINET ve Modbus/TCP desteği.
  • Ağ yedekliliği için Turbo Ring, Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, ve MSTP desteği
  • Multicast trafik kontrolü için IGMP snooping ve GMRP desteği
  • Port Based VLAN, IEEE 802.1Q VLAN ve GVRP protokol desteği
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ)  desteği
  • Optimum bantgenişliği kullanımı için Port Trunking desteği
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS ve SSH desteği
  • SNMPv1/v2c/v3 desteği
  • RMON desteği
  • Öngörülemeyen network problemlerine karşı bant genişliği yönetimi
  • Yetkisiz erişimleri engellemek için Mac Adress tabanlı port kilitleme
  • Anlık hata ayıklama için Port Mirroring desteği
  • E-mail ya da röle çıkışlı hata uyarı destği
  • System konfigürasyonun yedeklenmesi, tekrar yüklenmesi ve yazılım güncelleme işlemleri için ABC-02-USB

• Technology

Standards

IEEE 802.3af/at for Power-over-Ethernet
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, PROFINET, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues

4

Max. Number of Available VLANs

256

VLAN ID Range

VID 1 to 4094

IGMP Groups

2048

MAC Table Size

8 K

Packet Buffer Size

1 Mbit

Jumbo Frame Size

9.6 KB

• Interface

Fiber Ports

100/1000BaseSFP slot

RJ45 Ports

10/100/1000BaseT(X) auto negotiation speed

PoE Pinout

V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI, Mode A)

USB Ports

USB console port (Type B connector)
USB storage port (Type A connector)

DIP Switches

Turbo Ring, Master, Coupler, Reserve

LED Indicators

PWR1, PWR2, FAULT, STATE, 10/100/1000M, MSTR/HEAD, CPLR/TAIL

Alarm Contact

1 relay output with current carrying capacity of 1 A @ 24 VDC

Digital Inputs

1 input with the same ground, but electrically isolated from the electronics.
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA

Button

Reset button

• Power Requirements

Input Voltage

48 (46 to 57 V) VDC redundant dual inputs
(> 50 VDC for PoE+ output recommended)

Input Current

0.33A @ 48 VDC (w/o PDs connected)

Overload Current Protection

Present

Connection

2 removable 2-contact terminal blocks

Reverse Polarity Protection

Present

Note

When selecting power supply, check the PD power consumption.

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

Weight

1540 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508, EN60950-1 (LVD)

EMI

FCC Part 15 Subpart B Class A, EN 61000-6-4 (Industrial)

EMS

EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3,
EN 61000-4-8

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

361,368 hrs.

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

EDS-G512E-8PoE-4GSFP

12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -10 to 60°C operating temperature

EDS-G512E-8PoE-4GSFP-T

12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -40 to 75°C operating temperature
