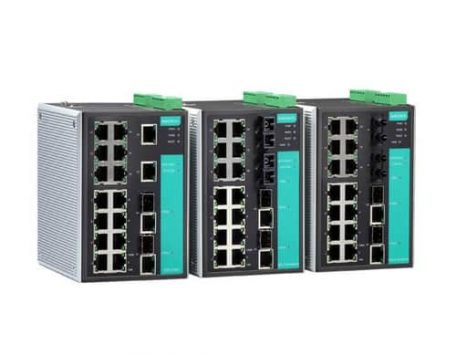

EDS-518E Serisi

• Technology

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, LLDP, EtherNet/IP, Modbus/TCP, IEEE 1588 PTPv2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues 4

Max. Number of Available VLANs 64

VLAN ID Range

VID 1 to 4094

IGMP Groups 256

MAC Table Size 8 K

Packet Buffer Size 1 Mbit

• Interface

Fast Ethernet

2 or 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

Gigabit Ethernet

3 10/100/1000BaseT(X) with 100/1000BaseSFP combo slots (EDS-611 and EDS-619 only)

Console Port

RS-232 (RJ45 connector)

DIP Switches

Turbo Ring, Master, Coupler, Reserve

System LED Indicators

PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1/G2/G3 (EDS-611 and EDS-619 only)

Alarm Contact

1 relay output with current carrying capacity of 1 A @ 24 VDC

Digital Inputs

1 input with the same ground, but electrically isolated from the electronics.
• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA

• Power Requirements

Input Voltage

12/24/48 VDC, redundant dual inputs

Input Current

EDS-608: 0.16A @ 24 V
EDS-611: 0.31A @ 24 V
EDS-616: 0.25A @ 24 V
EDS-619: 0.31A @ 24 V

Overload Current Protection

Present

Connection

1 removable 5-contact and 1 removable 6-contact terminal block

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

IP30 protection

Dimensions

EDS-608/611 Series: 124.9 x 151 x 157.2 mm (4.92 x 5.95 x 6.19 in)
EDS-616/619 Series: 185 x 151 x 157.2 mm (7.28 x 5.95 x 6.19 in)

Weight

EDS-608: 2080 g
EDS-611: 2260 g
EDS-616: 2780 g
EDS-619: 2950 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508, UL 60950-1, EN 60950-1

Hazardous Location

UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A,
EN 61000-6-4 (Industrial)

EMS

EN 61000-6-2 (Industrial)
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-29

Marine

DNV, GL, LR, ABS, NK

Traffic Control

NEMA TS2

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

EDS-608: 506,219 hrs
EDS-611: 483,344 hrs
EDS-616: 546,937 hrs
EDS-619: 475,816 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

Mevcut Modeller

EDS-518E-4GTXSFP

Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature

EDS-518E-4GTXSFP-T

Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature

EDS-518E-MM-SC-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -10 to 60°C operating temperature

EDS-518E-MM-SC-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, SC Connector), -40 to 75°C operating temperature

EDS-518E-MM-ST-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -10 to 60°C operating temperature

EDS-518E-MM-ST-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Multi-mode, ST Connector), -40 to 75°C operating temperature

EDS-518E-SS-SC-4GTXSFP

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -10 to 60°C operating temperature

EDS-518E-SS-SC-4GTXSFP-T

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (Single-mode, SC Connector), -40 to 75°C operating temperature
