CSM-200 Serisi

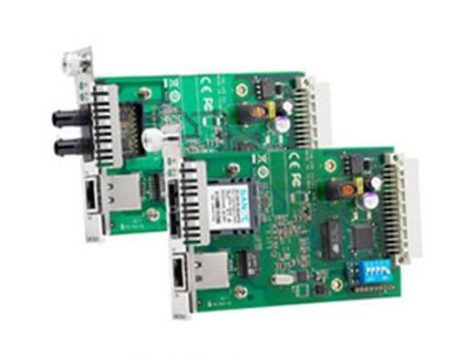

CSM-200 resim

10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™

  • LFP (Link Fault Pass-through) ve FEF (Far End Fault)
  • 2 farklı işletim modu
    • Store-and-Forward
    • Pass Through
  • Auto Negotiation
  • TS-1000 Versiyon 2 protokol desteği (CSM-400 Series only)
  • Tak çalıştır yapıda (Plug and Play)
  • Hot-swap özelliği (Çalışmaya devam ederken değiştirilebilme)

• Technology
Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX
• Interface
RJ45 Ports 10/100BaseT(X)
Fiber Ports 100BaseFX (SC/ST connectors)
LED Indicators PWR, Fiber Link, 10/100M (TP port)
• Physical Characteristics
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight Product only:
CSM-200-1213: 115 g (0.25 lb)
CSM-200-1214/1218: 125 g (0.28 lb)
Packaged:
CSM-200-1213: 170 g (0.37 lb)
CSM-200-1214/1218: 180 g (0.40 lb)
• Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage 12 VDC
Power Consumption 180 mA @ 12 VDC
• Standards and Certifications
Safety UL 60950-1
EMC CE, FCC
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3,
EN 61000-4-11 (DIPS)
Freefall IEC 60068-2-32
• MTBF (mean time between failures)
Time 1,454,560 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Modeller

CSM-200-1213

10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector

CSM-200-1214

10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode SC connector

CSM-200-1218

10/100BaseT(X) to 100BaseFX slide-in module media converter, single-mode SC connector
