Remotely Monitor, Manage and Control Industrial Equipment Over the Net

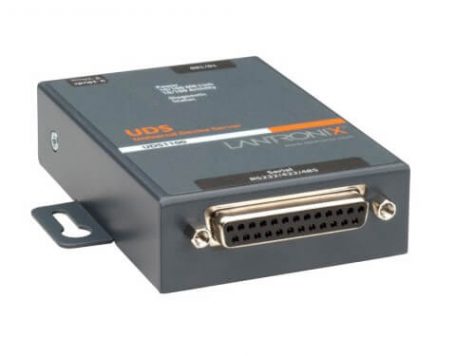

The UDS1100-IAP is a rugged and powerful tool which enables users to connect, manage and control just about any piece of industrial equipment from virtually anywhere over Ethernet or the Internet.

This single-port Device Server is a quick, simple and inexpensive way to bring the advantages of real-time or on-demand information access.

  • In minutes, securely connect factory floor devices to enterprise systems
  • Access, monitor and control equipment over Ethernet
  • Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
  • Supports RS-232, RS-422 and RS-485 communications
  • Includes Modbus TCP, ASCII, RTU and DF1 protocols
  • 15kV serial ESD protection
  • Wide -40°– 70°C operating temperature range
  • Environmentally-friendly RoHS and WEEE-compliant

Standards Based Communications

Using an open Ethernet architecture as a standard provides the flexibility for equipment to communicate to virtually any type of industrial device.

When used in conjunction with an OPC server, most Windows® based HMI, SCADA and PC-based control applications have full access to information in the industrial equipment networked by the UDS1100-IAP.

Extending Serial Communications Across the Globe

Our approach to network-enabling devices is transparent to your attached equipment and software so you won’t need to change the way you work. Using a method called serial tunneling, the UDS1100-IAP encapsulates serial data into packets and transports it over Ethernet. Serial tunneling can be done in multiple ways:

Using Lantronix supplied Com Port Redirector software, Windows device applications not designed for network communications are re-directed to communicate to devices connected to the UDS1100-IAP.

Connecting two UDS1100-IAP Device Servers configured to automatically talk to each other over the network creates virtual serial connections that can extend serial communications across a facility or around the world.

Built-in Web Server

The built-in web server enables users to access and configure the UDS1100-IAP from a standard web browser. Web pages enabling the UDS1100-IAP to be customized for unique applications can be built using Lantronix development tools. On-board Flash memory provides room for future system software upgrades and maintenance-free, nonvolatile web page storage.

Easy to Set Up and Use

The UDS1100-IAP can be set up locally through its serial port, or remotely using Telnet or a web browser. The included DeviceInstaller Windows-based configuration software simplifies setup and provides an easy way to:

  • Assign IP & other network specific addresses
  • Load custom web pages
  • Enable web-based configuration of the Device Server
  • Ping or query the attached device(s) over the network
  • View specific device data files
  • Upgrade firmware
  • Simplify process of installing industrial protocols

Complete with an auto MDI/MDIX Ethernet interface, the UDS1100-IAP is a powerful device communication solution that’s perfect for your most demanding industrial applications.

Modem Replacement

In modem emulation mode, the UDS is used to replace dialup modems. The unit accepts modem AT commands on the serial port. It then establishes a network connection to the end device, leveraging network connections and bandwidth to eliminate dedicated modems and phone lines.

RoHS logoRoHS-compliant, the UDS1100-IAP meets Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

If you’re looking for a transparent, cost-effective, and scalable means to network-enable your industrial automation equipment, look no further than the UDS1100-IAP.

Serial Interface

Interface: Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)

Connectors: 1 DB25F DCE serial port

Data Rates: Software-selectable baud rate from 300 to 230 KBaud

Serial Line Format

Characters: 7 or 8 data bits

Parity: odd, even, none

Stop Bits: 1 or 2 Control

Flow Control

Signals: CTS/RTS (Hardware)

Flow Control: XON/XOFF (Software)

Network Interface

Interface: 10Base-T/100Base-TX Ethernet port

Software selectable Ethernet speed 10/100/Auto

Software selectable Half/Full/Auto duplex

Connectors: RJ45

Standards: ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, and Telnet, TFTP

Indicators (LED)

Power, 10/100 Link/Activity (green)

100/100 Link/Activity (green)

Diagnostics (red)

Status (green)


CPU: Lantronix DSTNI-EX 48 MHz clock

Memory: 256 KB zero wait state SRAM, 2 MB Flash


Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP



DC or 9-24 VAC on barrel connector (1.5 Watts maximum consumption)

DC on DB25F serial interface


Powered over Ethernet via 802.3AF compliant power source


Operating: 0° to 60° C (32° to 140°F)

Storage: -40° to 85° C (-40° to 185° F)

Agency Approvals

UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864

Included Software

Windows® 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector software and related utilities


Material: Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available

Dimensions (LxWxH): 9.0 x 6.4 x 2.3 cm (3.5 x 2.5 x 0.9 in)

Weight: 0.20 kg (0.45 lb)

IP Rating: 30

Shipping Dimensions

Dimensions (LxWxH): 35.5 x 17.1 x 7.6 cm (14 x 6.75 x 3 in)

Weight: 1.5 kg (3.0 lbs)


Designed with protection against transients and ESD for use under harsh environments.

Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers

Power Input: Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages

Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
