Spider Duo

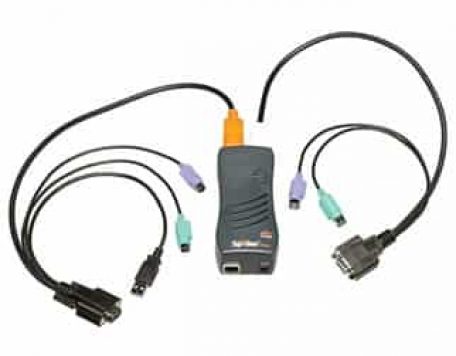

slslp400ps2-01-2t resim

Compact KVM-over-IP Plus Local Access for Distributed Server Management

The Lantronix SpiderDuo KVM-over-IP is the newest in the popular Spider family of remote KVM solutions. Spider Duo provides secure, remote KVM (keyboard, video and mouse) over-IP capabilities as well as transparent local access.

  • Reduce costs and decrease downtime by remotely managing PCs and servers, down to the BIOS level, while still allowing transparent local access
  • Transfer files, install patches, perform upgrades remotely with Virtual Media
  • Remotely manage power with the optional power control unit
  • Easy configuration and installation with color coded connectors—local and remote management are up and running in minutes


Flexible KVM-over-IP

The Spider Duo is ideal for those who need local access, as well as the flexibility of KVM-over-IP in a single integrated solution. Its palm-sized, “zero-U” design is perfect for space-constrained applications. What’s more, Spider Duo requires no additional software and allows full BIOS level control of the host system.



Secure Remote Management

Spider Duo makes administration a breeze. Using integrated Virtual Media, users can transfer files, perform upgrades, install patches, redirect local drives and perform full system upgrades by ISO file. Coupled with the optional single port PCU (power control unit), authorized users can also initiate system reboots over the network. Spider Duo allows complete local, plus remote management of the host machine anytime, from virtually anywhere. It provides reliable, secure access to servers located in data centers, kiosks, regional offices, campuses, ATMs, Point-of-sale (POS), training centers, or test and development labs.



Security

  • In-Band (Ethernet) – Dual Ethernet ports
  • Hardware based encryption of keyboard, mouse and video data
  • IP Source Address Filtering
  • Remote Authentication: LDAP, RADIUS, Active Directory
  • User/Group management with permissions control
  • Configurable port numbers (HTTP,HTTPS,Telnet, SSH)
  • Selective disable of Telnet/SSH

Access

  • Local access and up to 8 simultaneous remote users

Target Server Requirements

  • Supports Multiple Operating Systems: Windows 2000/2003/2008/XP/Vista/7, Unix, Linux, or MAC OSX 10
  • Keyboard/mouse: 1 USB, 1 PS/2 keyboard, and 1 PS/2 mouse connector
  • Video Interface: HD15 VGA video output (up to 1600×1200@60Hz)

Client System Requirements

  • Internet Explorer 6.0+, Netscape 5.0+, Firefox 3.0+, Safari 2.0+
  • PIII Processor equivalent or better (recommended)
  • Sun Java 2 Runtime Environment
  • Telnet/SSH client for command line (CLI) access

Interfaces

  • Network: 10/100Base-T Ethernet Port with activity indicators (RJ45)
  • Serial: RS-232, up to 115,200 bps for serial device pass-through, unit configuration or PCU controller
  • USB
  • Local KVM connector
  • Computer input connector



Environmental

  • Operating: 0º to 45º C (32º to 115º F)
  • Storage: -20º to 70º C (-4º to 158º F)
  • Humidity: 0 to 95% RH (non-condensing)
  • Heat Dissipation: 4 Watts (14 BTU/hr)

Power Requirements

  • Input: 5 VDC @ .8A max. (server powered)
  • Optional Auxiliary DC power supply available for redundancy (p/n: 520-085-R)

Certification

  • UL/CUL (CSA-22.2 No. 60950-1-03 / UL-60950-1)
  • CE – IEC 60950-1
  • C-Tick
  • FCC Part 15, Equipment Class A
  • VCCI V-3/2006.04 Class A
  • AS/NZS CISPR 22: 2006 Class A
  • EN55022:1998 +A1:2000 +A2:2003 Class A
  • EN61000-3-2: 2000 +A2: 2005 Class A
  • EN61000-3-3: 1995 +A1: 2001
  • EN55024: 1998 +A1:2001 +A2:2003
  • RoHS Compliant

Warranty

  • 2 year limited warranty

Physical

  • Spider Unit Dimensions (HxWxD): 13.2 x 5.8 x 3.1 cm (5.2 x 2.3 x 1.2 in)
  • Weight: 185g (6.6 oz)
  • Shipping Weight: 0.5 kg (1.0 lbs)
